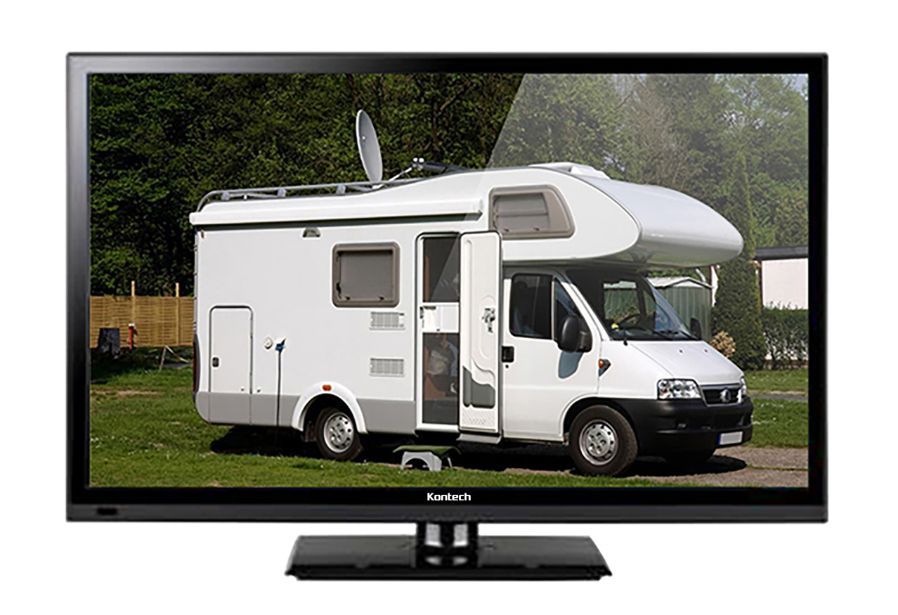

Caravan TV

Kontech Caravan TV, Jail TV, Waterproof TV,Solar TV&outdoor TV has been used in more than 170 countries and areas worldwide. As a professional TV& display key solution provider, We always adhere to scientific and technological innovation customer needs and the forefront of technogy.


Optional to choose TV system at ATSC/`DVB-T2/DVB-S2/ISDB-T
9-36V DC operating range
178°/178°viewing angle.
HDMI CEC/ARC/MHL.
Optional to have build in DVD.
Available to support Android system.
Optional Bluetooth connecting with sound bar, cell-phone.
One button fast scan, remote control antenna.
Strong cabinet resist vibration.
Speaker box offers good quality sound

Details Parameters Application
Model number VTL1  series
This version just for Europe market, want to other countries and regions version please contact us.
PANEL
Screen Size(diagonal) 18.5"HD 21.5"FHD 23.6"FHD
Back Light LED, Edge LED, Edge LED, Edge
Resolution 1366*768(720p) 1920*1080(1080p) 1920*1080(1080p)
Response Time (typical) 5ms 5ms 5ms
Brightness(cd/m2,typical) 200cd/m2 200cd/m2 200cd/m2
Contrast Ratio(typical) 1000:1 1000:1 3000:1
Viewing Angle Degree(H/V)  H:178°, V:178°   H:178°, V:178° H:178°, V:178°
Frame Rate  60Hz 60Hz 60Hz
Aspect Ratio 16:9 16:9 16:9
Panel  AUO/CMI/PANDA/BOE AUO/CMI/PANDA/BOE AUO/CMI/PANDA/BOE
TV SYSTEM
Receiving range ATV 48.25MHz – 863.25MHz
DTV  T/T2/C(44MHz – 862MHz)
Suport H.264 YES YES YES
Video system PAL ,SECAM PAL ,SECAM PAL ,SECAM
Sound system BG,DK,I, NICAM/A2 BG,DK,I, NICAM/A2 BG,DK,I, NICAM/A2
Teletext    1000Pages 1000Pages 1000Pages
Build-in Tuner DVB-T2&S2 DDVB-T2&S2 DVB-T2&S2
Comb Filter 3D 3D 3D
De-interlace 3D 3D 3D
Noise Reduction YES YES YES
AUDIO
Audio Output 2*5W 2*5W 2*5W
INPUTS AND OUTPUTS
TV Tuner x2 x2 x2
VGA NO NO NO
PC AUDIO NO NO NO
SCRACT YES YES YES
CI + YES YES YES
COAX x1 x1 x1
HDMI  x2 (CEC,ARC,MHL) x2 (CEC,ARC,MHL) x2 (CEC,ARC,MHL)
USB                             x2 x2 x2
EARPHONE x1 x1 x1
YPBPR (MINI) x1 x1 x1
AV IN (MINI) x1 x1 x1
RL AUDIO out x1 x1 x1
POWER CONSUMPTION
Power Supply AC100V-240V  DC 9-32V AC100V-240V  DC 9-32V AC100V-240V  DC 9-32V
Power Consumption(W) <24W <28W <32W
Standby Power Consumption <0.5W <0.5W <0.5W
REMOTE
Remote Control Type Standard Standard Standard
IR/RF IR IR IR
FEATURE
EPG YES YES YES
Sleep Timer YES YES YES
DVD slot YES YES YES
OSD MENU
OSD Laguage English/French/Spanish/Germany English/French/Spanish/Germany English/French/Spanish/Germany
ACCESSORIES
Remote Control YES YES YES
Battery YES YES YES
Cigarette  lighter YES YES YES
Power Cord & Adaptor Optional Optional Optional
User Manual (Language) English,French,Germany English,French,Germany English,French,Germany
COSMETIC
Cabinet Color Piano black Piano black Piano black
Desk Top Stand YES YES YES
Viewing angle adjustable NO NO NO
Panel Tilt NO NO NO
Vesa Pattern 100x100mm 100x100mm 100x100mm
DIMENSION
Net weight(Kg) 2.5 3.1 3.8
Gross weight(Kg) 2.3 3.35 3.5
Product Dimension without stand (mm) 443.9*270*45.3mm 509.5*308*50mm 558.7*337.8*50mm
Loading QTY For 20" 1200 800 800
Loading QTY For 40" 2400 1600 1600
Loading QTY For 40"HQ 2400 1600 1600
OTHER SPOTLIGHT SPECS
1, One button remote fast scan and Diesq control antenna
2,  Support build-in USB disc to stock  camping guide video for showing purpose
3,  9-32V surge protection
4,  Strong cabinet pass vibration test
5, Optional to make Android TV or Google TV
6,  R/L Audio out connect to outside speaker or amplifier
7, Build in speaker box offer good quality sound
